5531 Vibration Transducer Interface MTL Instruments 20 To 35VDc

Ask Lasest Price
Brand Name :	MTL
Model Number :	5531
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	100+pc+on stock
Delivery Time :	on request

Add to Cart

Product Details
Company Profile

5531 Vibration Transducer Interface MTL Instruments 20 To 35VDc

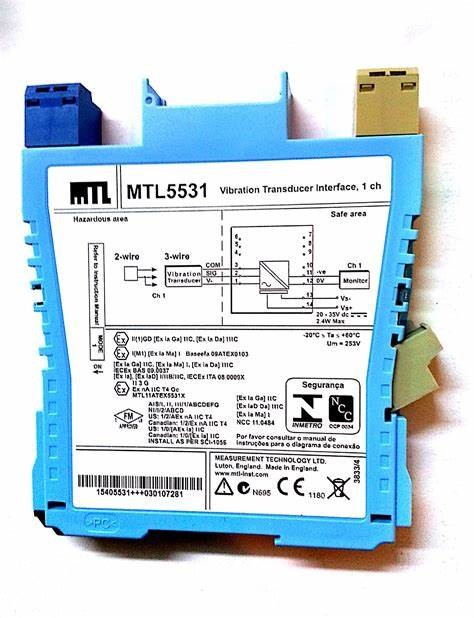

MTL 5531 Vibration Transducer Interface

Quick Detail of Vibration Transducer Interface

Manufacturer : MTL Instruments
Product No. : MTL5531
Product Type : Vibration Transducer Interface
Number of channels : One
Sensor type : 2- or 3-wire vibration transducer
Location of signal source : Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location
Hazardous-area input : Input impedance (terminals 2 & 3): 10k?
Transducer supply current, 2-wire : 3.3mA (nom.) for 2-wire sensors, user selectable by switch
Signal range : Minimum –20V, maximum –0.5V
DC transfer accuracy at 20°C : <±50mV
LED indicator : Green = power indication
Supply voltage : 20 to 35V dc
Maximum current consumption (10mA transducer load) : 65mA at 24V
Maximum power dissipation within unit : 1.33W
Weight : 0.11 Kg

Description of Vibration Transducer Interface

MTL 5531 repeats a signal from a vibration sensor in a hazardous area, providing an output for a monitoring system in the safe

area. The interface is compatible with 3-wire eddy-current probes and accelerometers or 2-wire current sensors; the selection is

made by a switch on the side of the module.

Specification of Vibration Transducer Interface

Sensor type	2- or 3-wire vibration transducer
Location of signal source	Zone 0, IIC, T4–6 hazardous area if suitably certified Div. 1, Group A hazardous location
Hazardous-area input	Input impedance (terminals 2 & 3): 10kΩ
Transducer supply current, 2-wire	3.3mA (nom.) for 2-wire sensors, user selectable by switch
Signal range	Minimum –20V, maximum –0.5V
DC transfer accuracy at 20°C	<±50mV
AC transfer accuracy at 20°C	0Hz to 1kHz: ±1% 1kHz to 10kHz: –5% to +1% 10kHz to 20kHz: –10% to +1%
Temperature coefficient	±50ppm/°C (10 to 65°C) ±100ppm/°C (–20 to 10°C)
Voltage bandwidth	–3dB at 47kHz (typical)
Phase response	<14µs, equivalent to: –1° at 200Hz –3° at 600Hz –5° at 1kHz –50° at 10kHz –100° at 20kHz
Safe-area output impedance	<20Ω
Supply voltage	20 to 35V dc
Safety description	Terminals 3 to 1 Uo=26.6V Io=94mA Po=0.66W Um = 253V rms or dc Terminals 3 to 2 Non-energy-storing apparatus ≤1.5V, ≤0.1A and ≤25mW
Note	Refer to the Instruction Manual for recommendations on mounting of these modules. Due to the high power dissipation the maximum ambient temperature for these modules when mounted in horizontal orientation is: • close packed 45°C • minimum of 10mm spacing 55°C

Feature of Vibration Transducer Interface

High-packing density means the barrier is economical and minimises power use
LED (light-emitting diode) indicator clearly shows the working status of the unit
DIN rail mounted for quick installation and simple maintenance

Advantage of Our Team

Best possible prices and delivery time
Long time experience in the field
Well trained staff
Own warehouse facilities
Best relationships with branch office of manufacture
Flexible and individual service for you
Cheap and safe forwarder for shipments (air)
